High Current PCB Mountable Contacts
Heavy-duty screw-machined contacts for Wind Tunnel & Laboratory Test fixtures.
Tooltronics PCB-Mountable Contacts are precision CNC machined to provide reliable electrical connections directly on a printed circuit board while accepting device leads for testing or interconnection. Ideal for test fixtures, in-circuit testing, and modular device interfaces, these contacts allow devices to be inserted or probed without permanent soldering, delivering low-resistance, repeatable performance.
Constructed from durable materials such as beryllium copper alloys and finished with gold over nickel or boron nickel, they ensure consistent conductivity and long-term reliability.
We offer a wide range of size variations to accommodate different device lead diameters, pin spacing requirements, and current-carrying capacities.
HPK-PCB-103
35A Rated

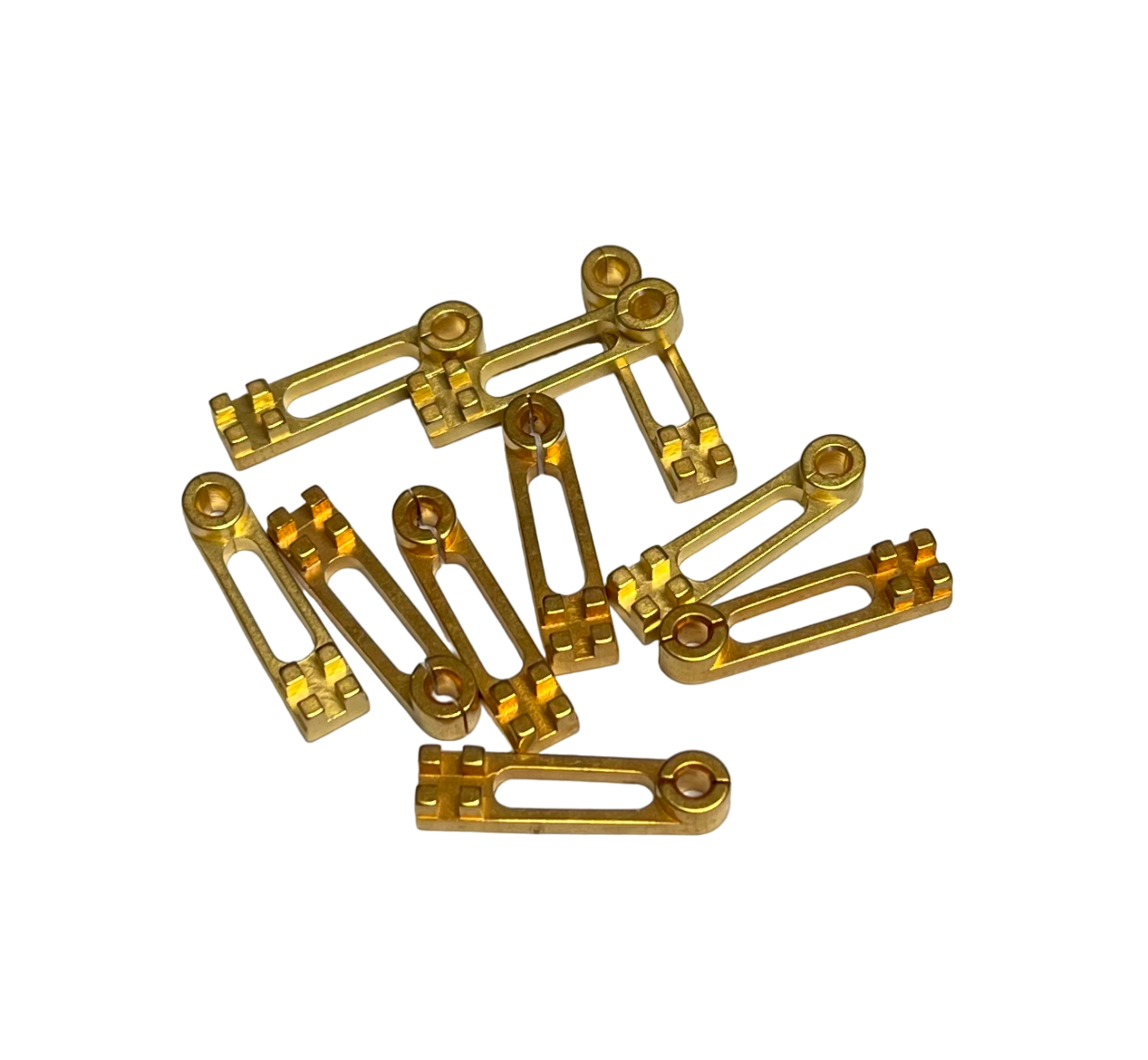

HPK-PCB-125
80A Rated
HPK-PCB-187
80A Rated

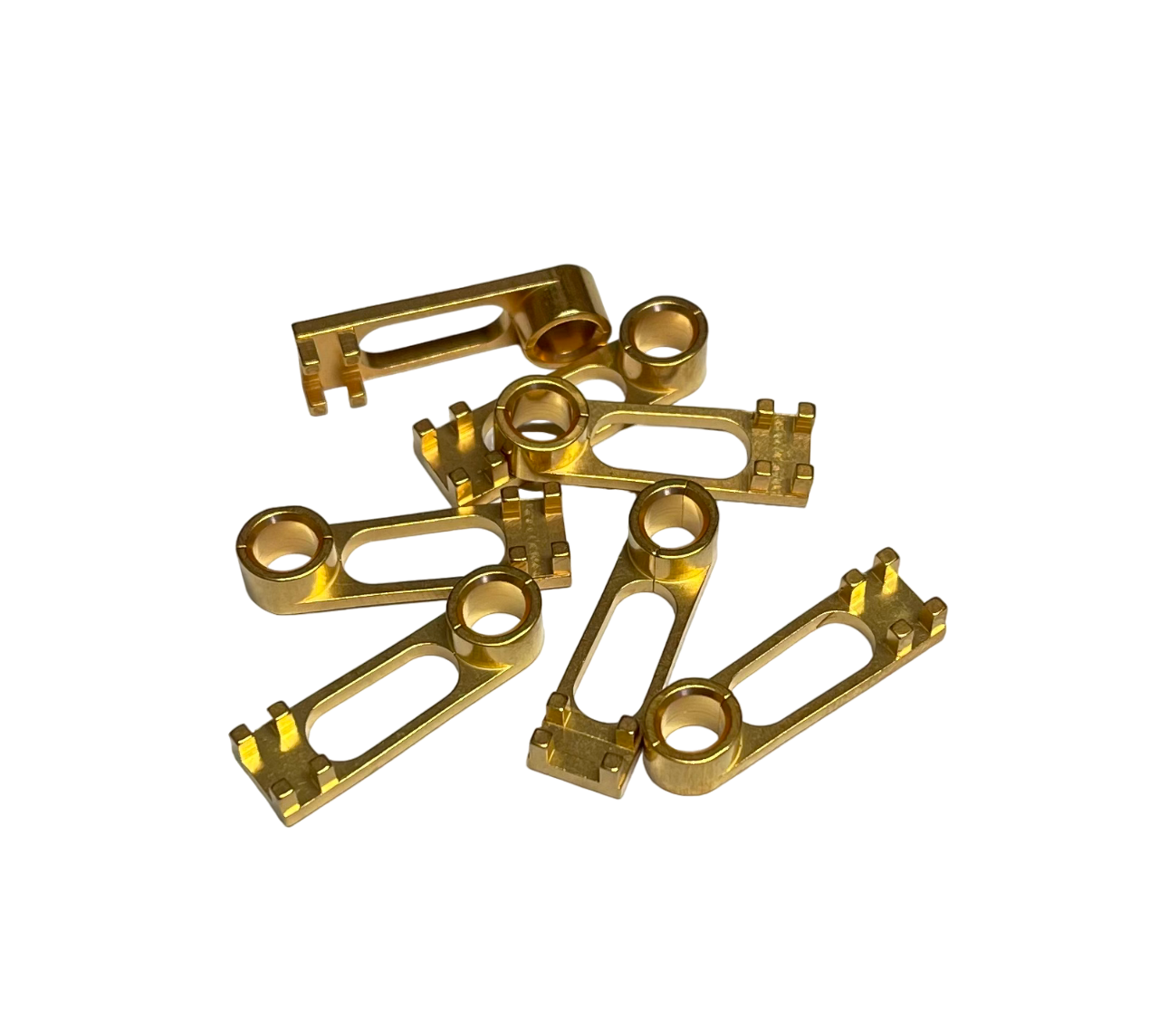

HPK-PCB-187-156
80A Rated
Key Features
- Up to 80 Amp rating
- PCB Mountable
- Various spacing options (.150", .200", .300")
- Robust design
Reliable High Current PCB Mountable Contacts for Demanding Applications
High Current PCB Mount Contacts from Tooltronics, Inc. are designed for applications requiring reliable high-current electrical connections directly through printed circuit boards. These contacts are commonly used in electronic test fixtures, production interfaces, and modular test systems where devices need to be repeatedly inserted and removed without permanent soldering.
Precision CNC machined for durability and repeatable performance, Tooltronics PCB mount contacts help provide secure low-resistance connections for demanding engineering and production environments.
Designed for Demanding Applications
Our PCB mount contact systems are engineered to support repeated device insertion while maintaining consistent electrical performance and long service life.
Common applications include:
High-current production testing
Burn-in and validation fixtures
Automated test equipment (ATE)
Modular device interfaces
Power electronics testing
In-circuit testing systems
Built for Reliability
Tooltronics PCB mount contacts are precision CNC machined from high-performance copper alloys including Beryllium Copper for excellent conductivity, durability, and spring performance. Contacts feature a gold over nickel boron nickel plating to provide enhanced corrosion resistance and reliable electrical performance over repeated cycles.
Features
High-current capable designs
Precision CNC machined construction
Replaceable contact configurations
Multiple lead diameter options available
Long service life for repeated cycling
Made in USA manufacturing
Custom Configurations Available
Tooltronics, Inc. offers a wide range of PCB mount contact configurations to accommodate varying device lead sizes, PCB layouts, spacing requirements, and current-carrying capacities. Custom-engineered solutions are available for specialized testing and interconnect applications.
Request a quote
Discuss a custom application
Send us your device drawing
Contact engineering support
